Geometry of Shade
Geometry. A façade begins as an experiment in overlap.

Geometry

A façade begins as an experiment in overlap.

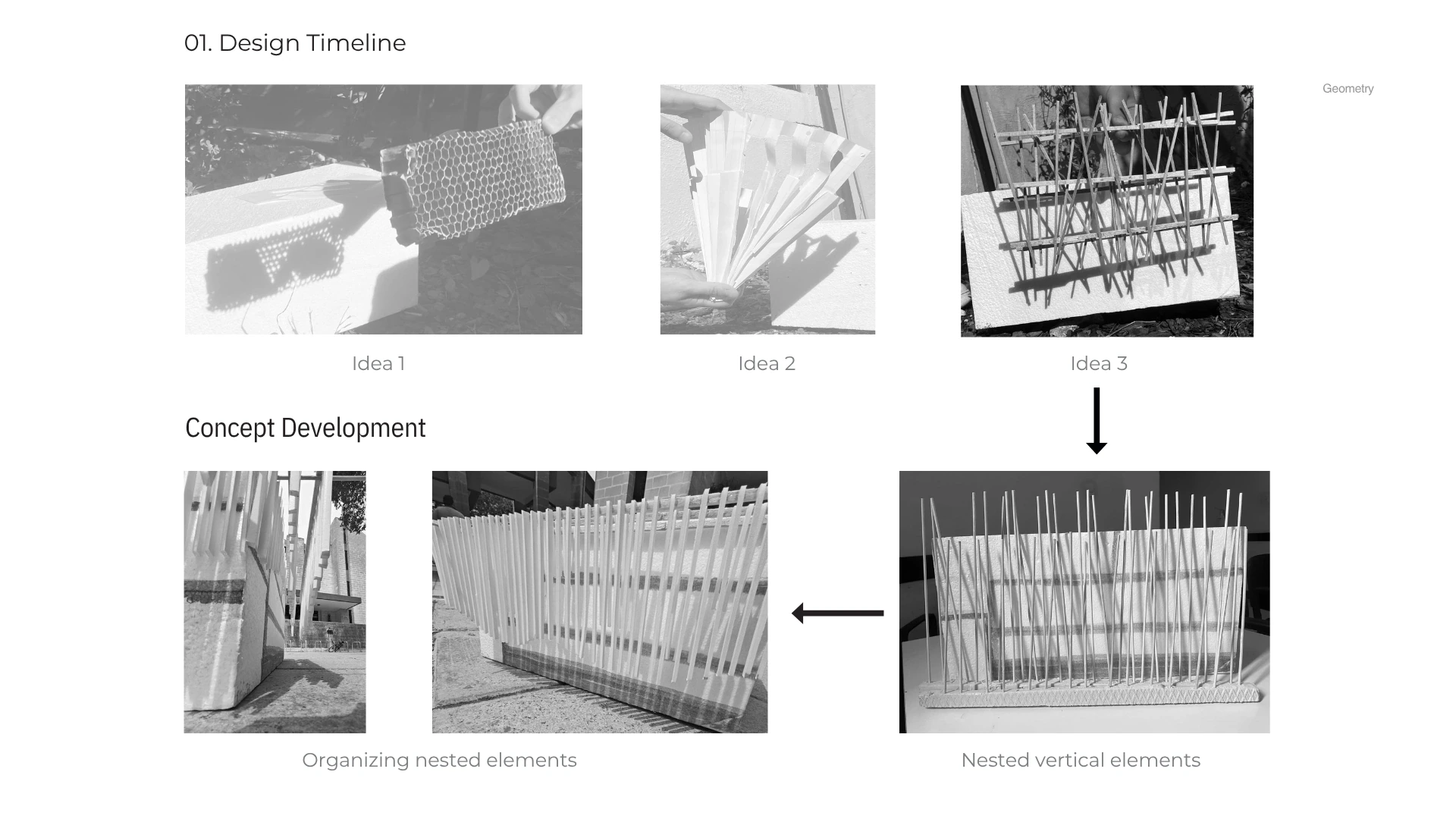

Design lineage. Fold, cell and stick are tested before the system is named.

Design lineage

Fold, cell and stick are tested before the system is named.

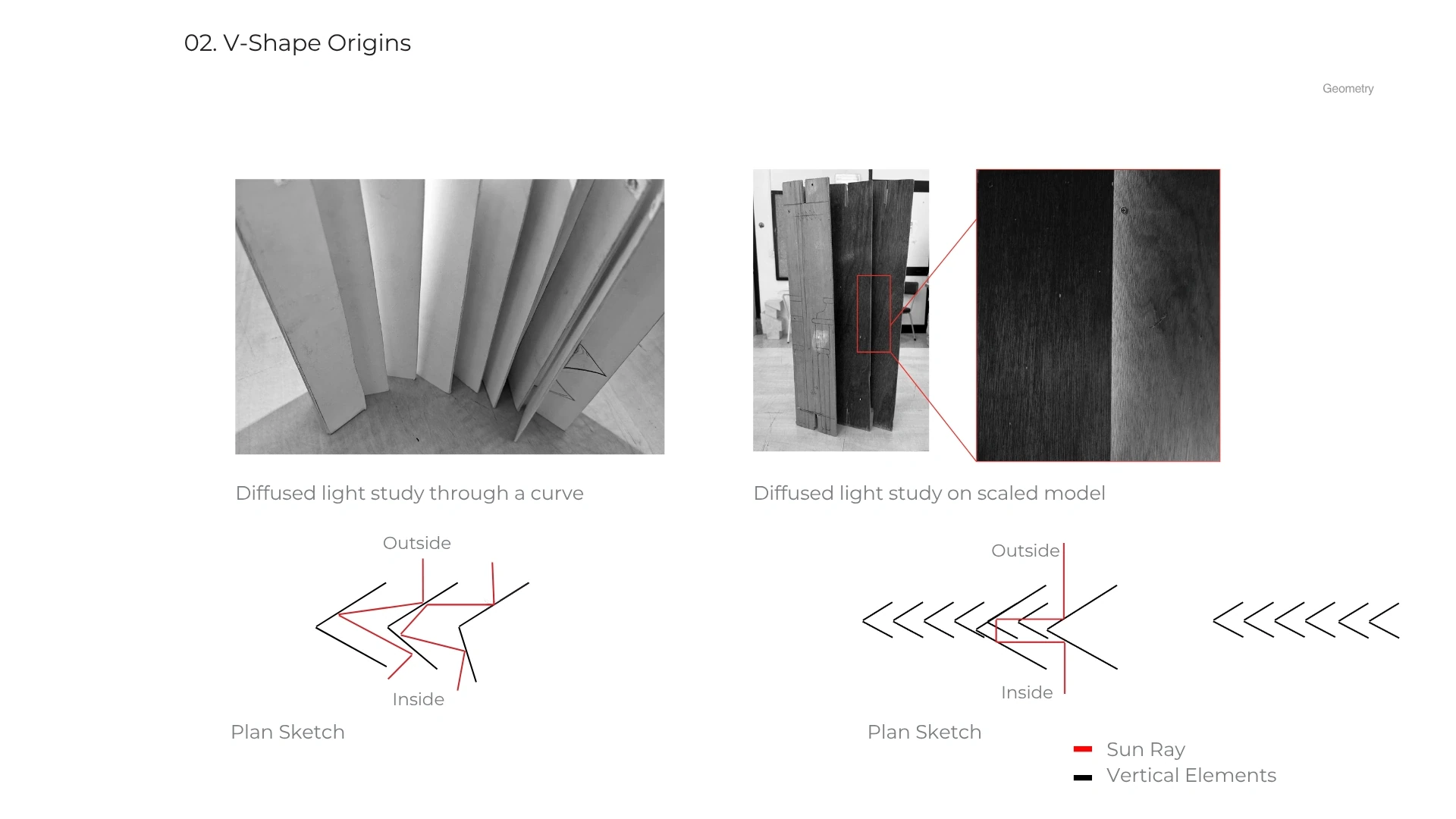

V-shaped origin. A single angle becomes a family of nested depths.

V-shaped origin

A single angle becomes a family of nested depths.

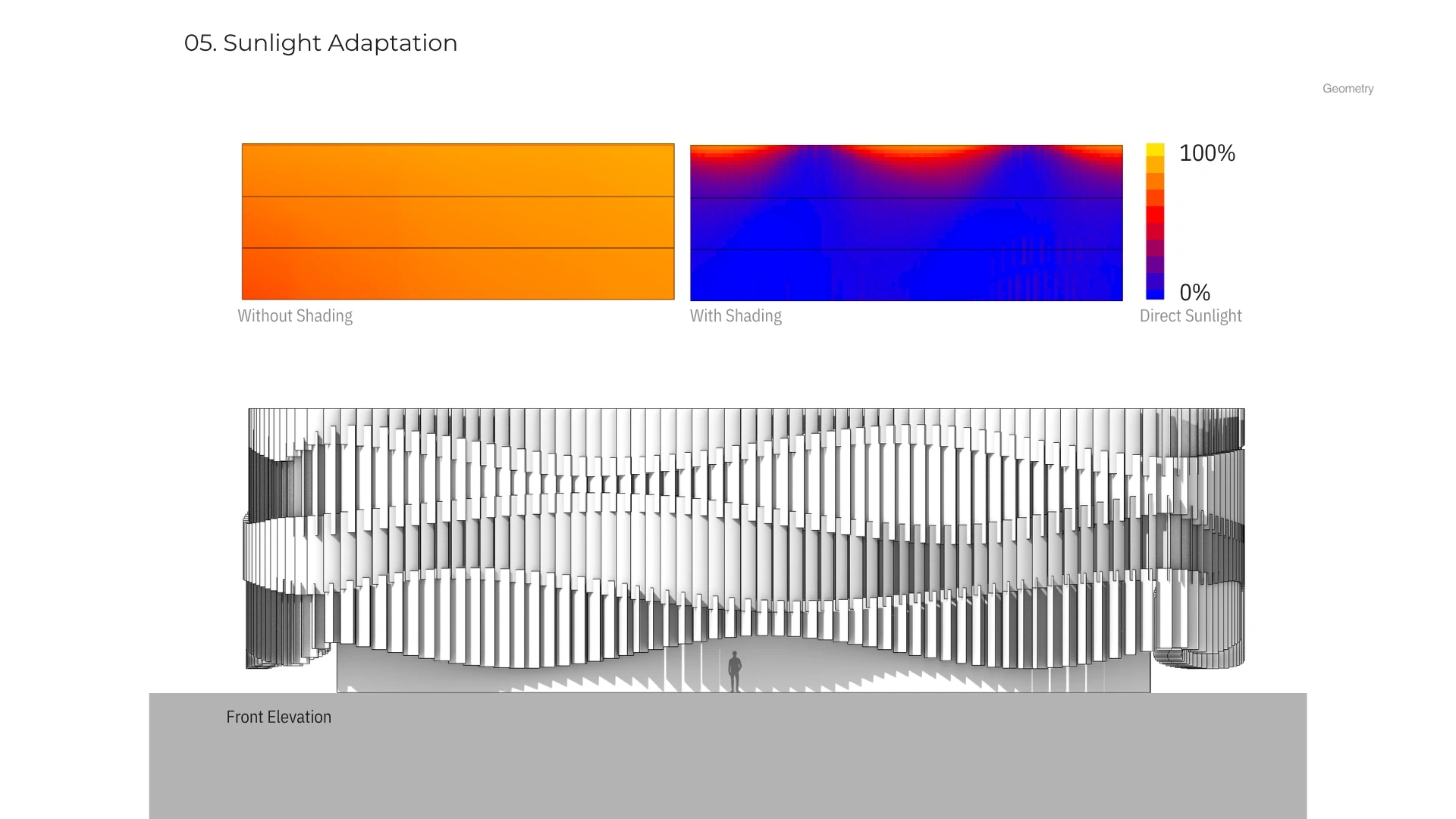

Light test. Overlap is measured through the shadow it makes.

Light test

Overlap is measured through the shadow it makes.

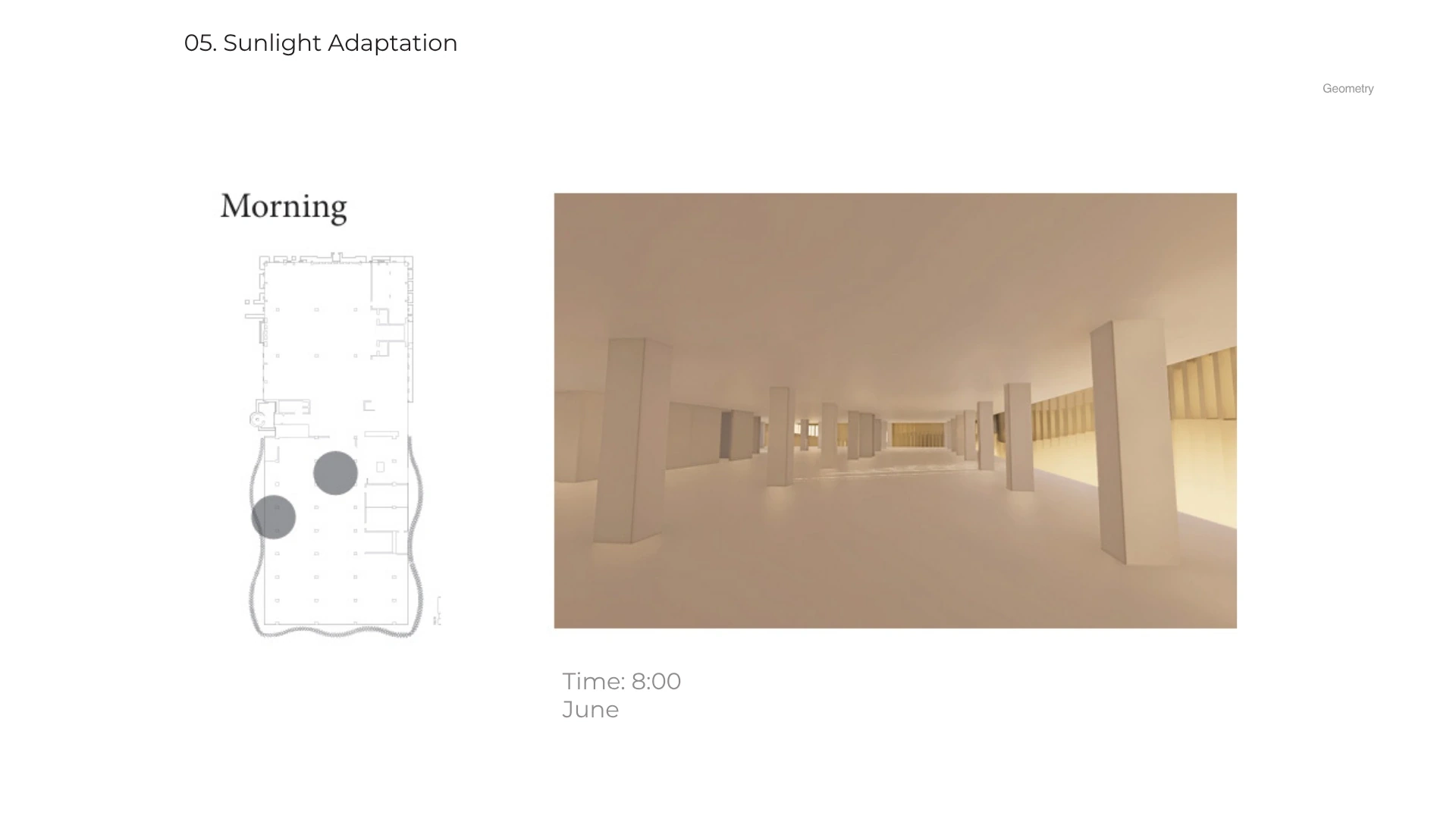

Morning. Low light exposes the depth of the fins.

Morning

Low light exposes the depth of the fins.

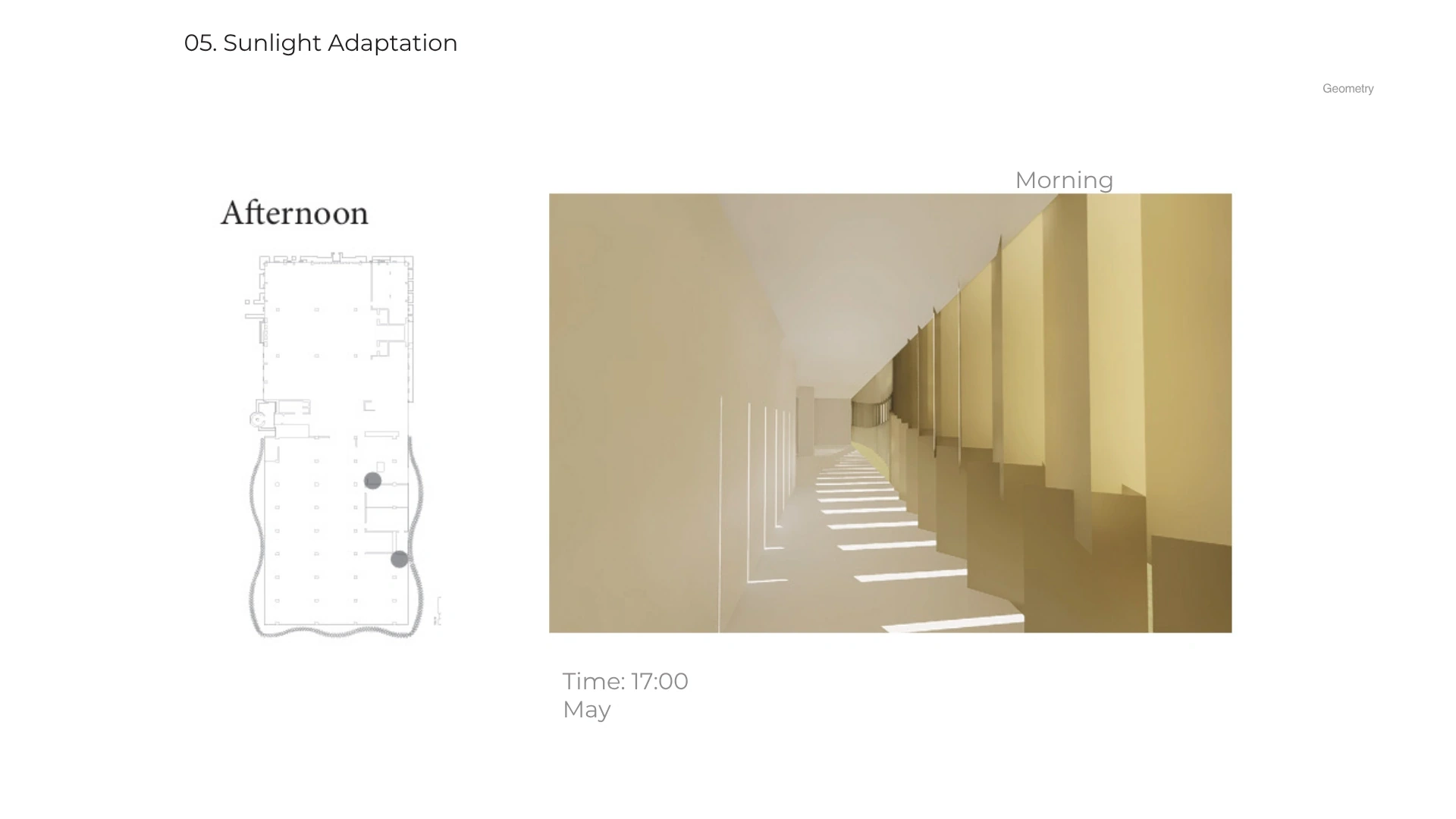

Afternoon. The surface changes without moving.

Afternoon

The surface changes without moving.

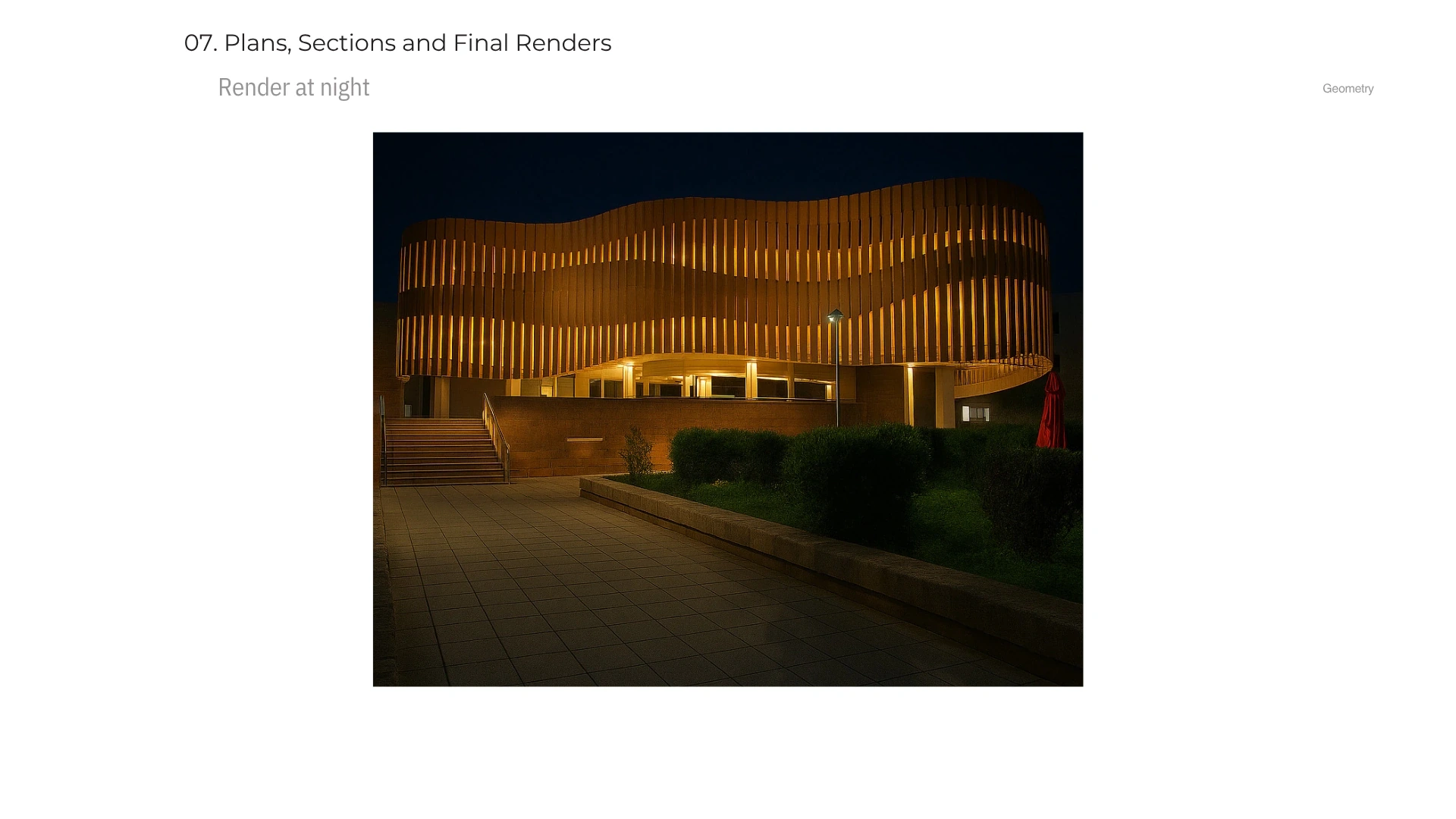

Night elevation. After dark, shadow becomes glow.

Night elevation

After dark, shadow becomes glow.

Selected work

Geometry of Shade

Nested vertical elements turn a simple V-shaped origin into a façade whose overlap, curvature and shadow change through the day.

Year
2024
Location
University of Malta
Programme
Environmental façade study
Project stage
Façade research / concept design
Client / brief
Academic research brief
Scale / area
Research study
Material register
Vertical fins, metal, glass, shadow, simulated daylight
Estimated cost
€90 to 160k prototype / portfolio estimate
Estimated delivery
4 to 7 months / portfolio estimate
Comparable size
900 m² façade / portfolio estimate
Design time
10 weeks / portfolio estimate
Difficulty
3 / 5
Role / authorship
Group project with Colin Curmi and Jean François Parnis

What is a façade?

A façade is an instrument placed between weather and occupation.

A façade is often mistaken for the image of a building. Before it is an image, it regulates exchange: light enters, heat is resisted, views are framed and privacy is negotiated.

Shade makes this performance visible. Its position changes with hour and season, so a fixed piece of geometry can produce an architecture that never appears exactly the same twice. The shadow is not an effect added later; it is evidence that the façade is working.

Applied hereThis study begins with a simple V-shaped element and tests how overlap, depth and curvature alter sunlight. The final form is the record of those environmental decisions.

Research source ↗

Read the full project note

The study moves from honeycomb, folded paper and irregular sticks toward a family of nested vertical elements. Their spacing and curvature are not formal decoration; they are calibrated against direct sun, overlap and the depth of shadow.

Morning, midday and afternoon simulations reveal a façade that is never seen as a fixed surface. At night, the same geometry becomes a luminous civic edge.
